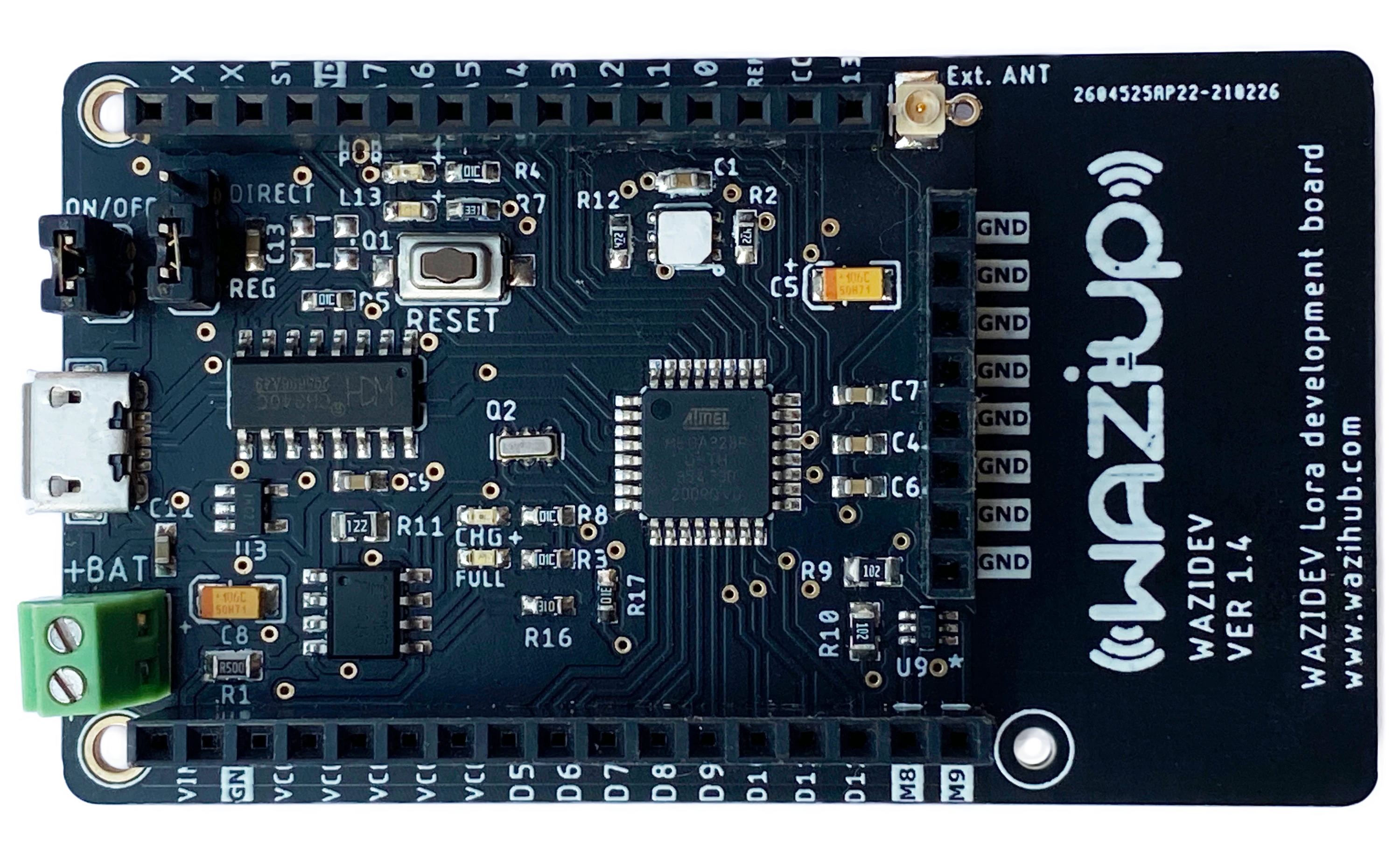

WaziDev: Your IoT development board

WaziDev is a Sensing and Actuation development board for IoT applications. It transmits data up to 7Km using the RFM95W LoRa module with an embedded LoRa antenna. It is easily programmable and customizable, using Arduino technology. Embedded is a Lipo battery charger for solar panels and low power options. An ideal solution for start-ups and entrepreneurs who want to rapidly prototype IoT applications

Features:

• Arduino Pro Mini compatible CPU
• RFM95W LoRa module
• Fully compatible with the Arduino development environment
• Embedded Lipo battery charger for solar panels and low power options
• Two pins with high current support (500mA)

Specifications:

• Microcontroller: ATmega328P
• Board Power Supply: 3.35 -12 V
• Circuit Operating Voltage: 3.3V
• Digital I/O Pins: 14
• PWM Pins: 6
• UART: 1
• SPI: 1
• I2C: 1
• Analog Input Pins: 6
• External Interrupts: 2
• DC Current per I/O Pin: 40 mA
• Flash Memory: 32KB of which 2 KB used by bootloader
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 8 MHz
