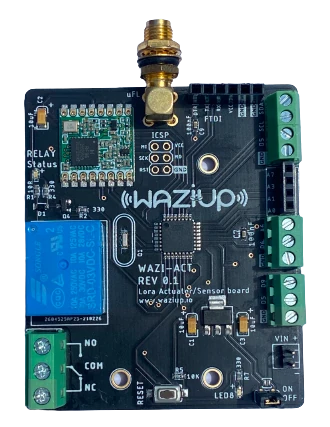

WaziAct: A board for your actuation applications!

The WaziAct is an all-in-one development board for projects involving the great outdoor and sensing, however unlike the WaziSense, it also has a relay for actuation. Fitted with a LoRa sx1276 chip, its able to communicate with a LoRa enabled gateway over long distances. It also has terminal connectors which make it easy to hookup peripherals and deploy solutions with ease.

Features:

  • Lora support (SX1276 Chip)
  • SMA connector with dedicated antenna
  • 3.3v 1A AMS1117 Voltage Regulator
  • 3v Single Channel Relay
  • Support for 4.2v battery

Specification:

  • Microcontroller: ATmega328P
  • Board Power Supply: 3.35 -12 V
  • Circuit Operating Voltage: 3.3V
  • Digital I/O Pins: 14
  • PWM Pins: 6
  • UART: 1
  • SPI: 1
  • I2C: 1
  • Analog Input Pins: 6
  • External Interrupts: 2
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32KB of which 2 KB used by bootloader
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 8 MHz
